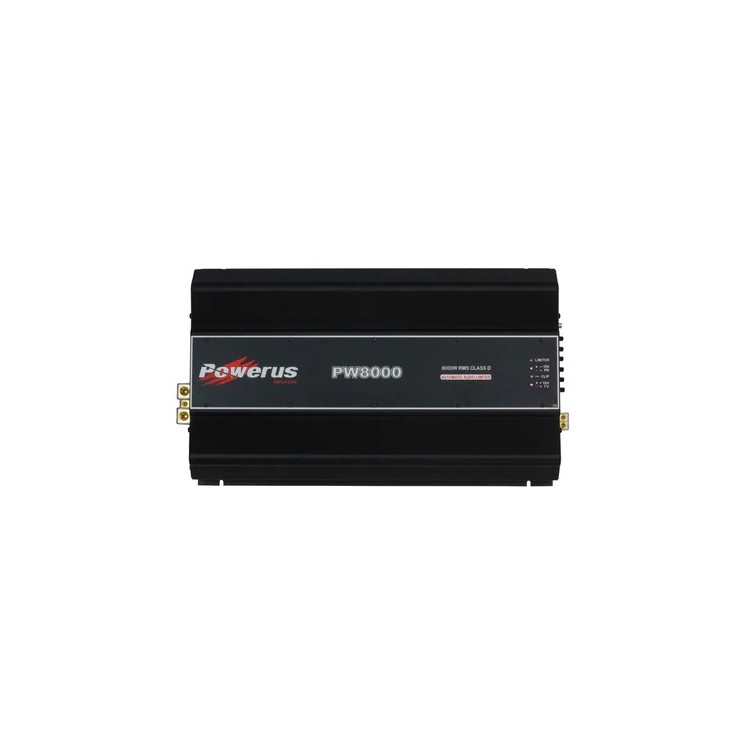

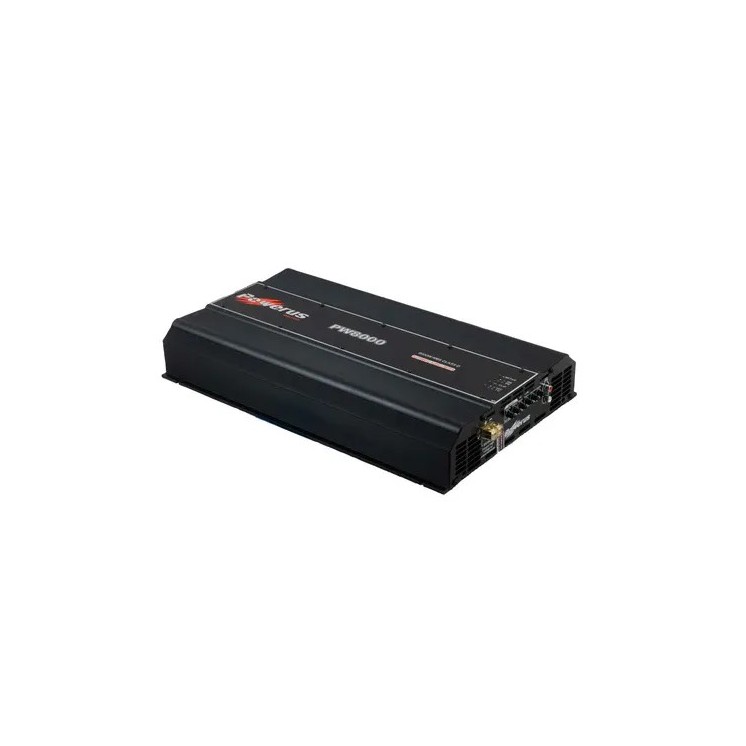

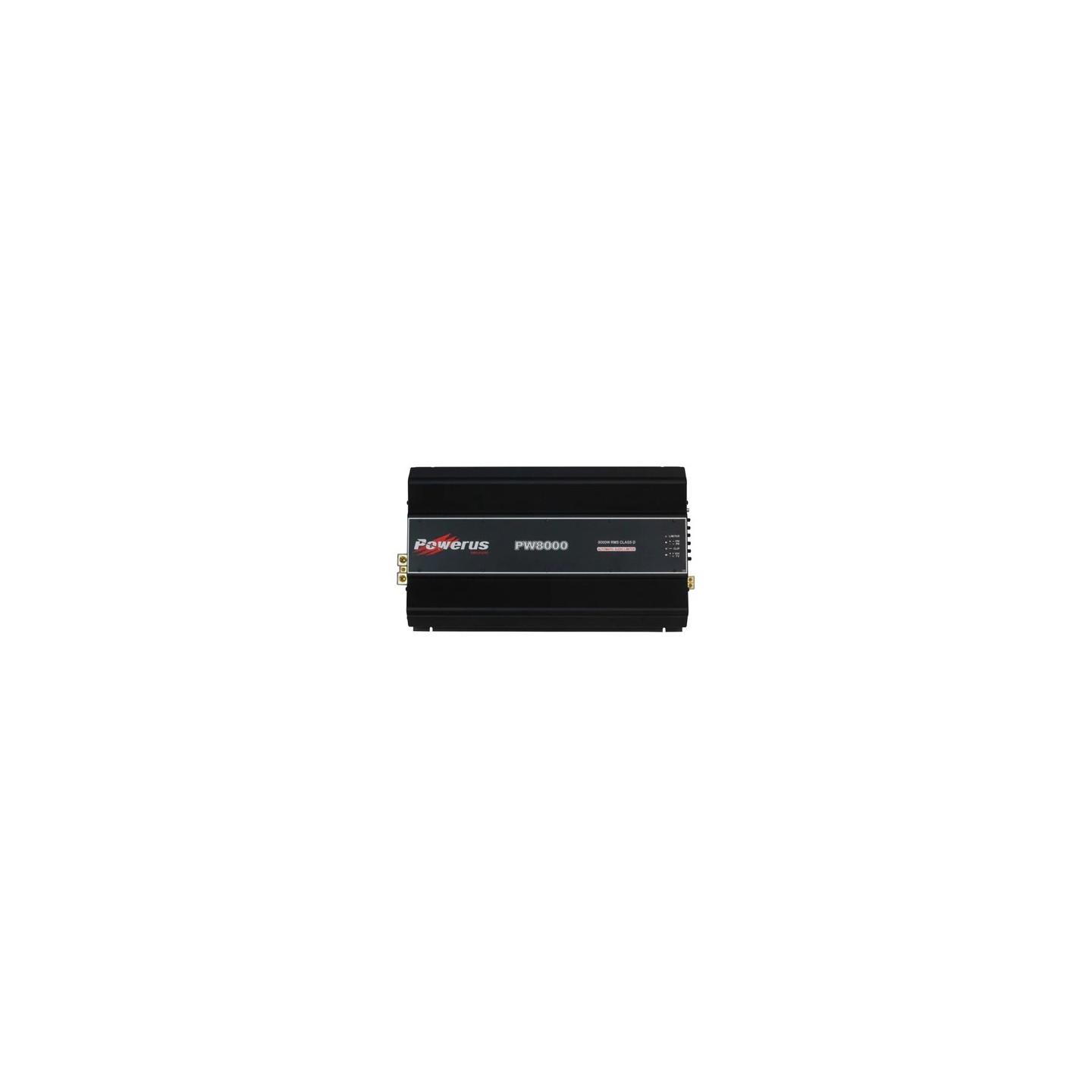

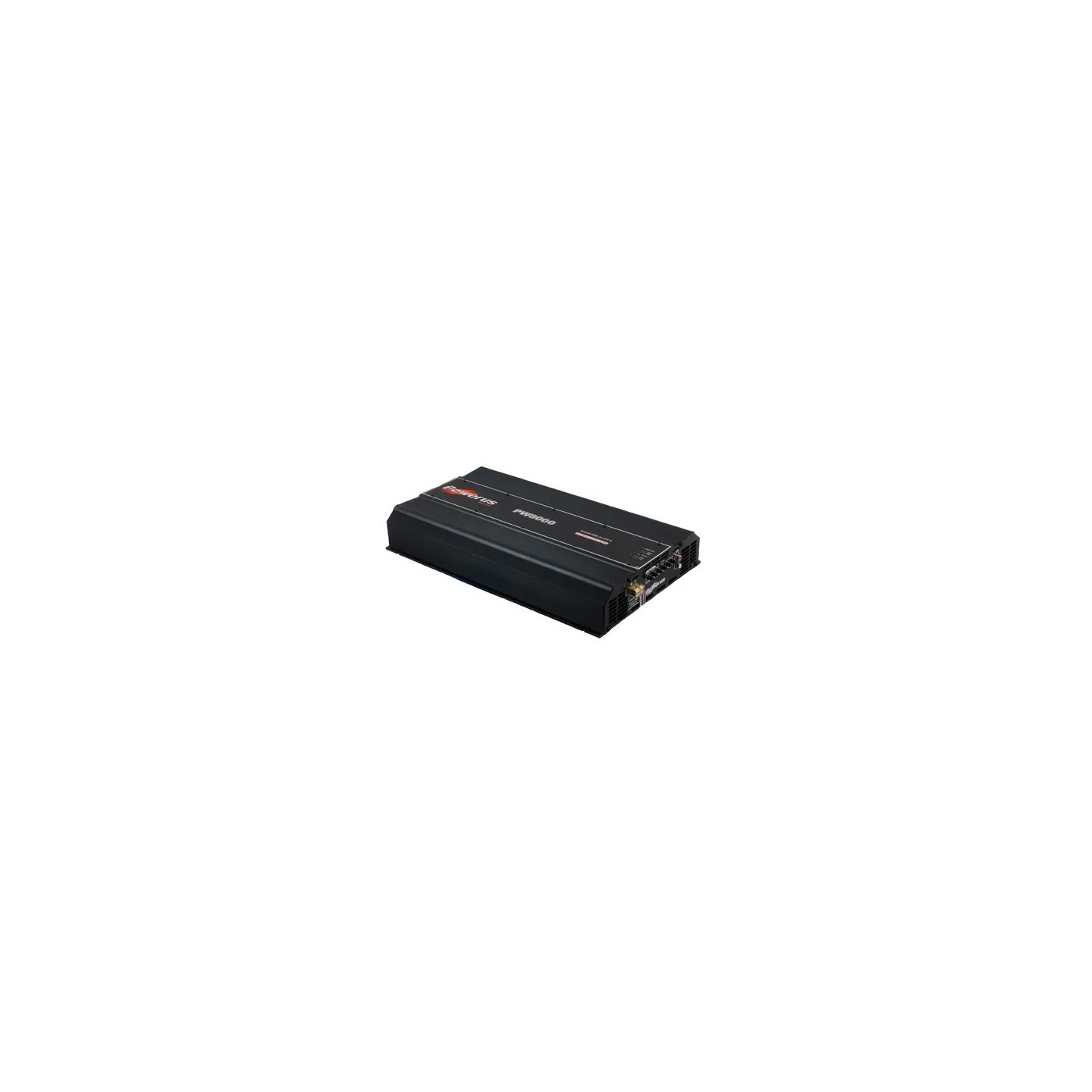

POWERUS PW8000 ( 8000 Wrms )

Technical Specifications:

Supply Voltage / Power Supply 7Vdc ~ 16V dc
Consumption at Rest / Consumption at Rest 2,7A
Musical Consumption / Music Consumption 445A
Cons. Max. Sinusoidal Signal 40Hz / Max. Consump. in Sinusoidal Signal 40Hz 895A
Efficiency / Efficiency 75%
Input Impedance / Input Impedance 22K Ohms
Input Sensitivity / Input Sensitivity 0.25V ~ 6V
Total Harmonic Distortion / THD 0.1%
SNR> 90dB
Damping Factor / Damping Factor 40Hz (12.6V 2 Ω)> 1000
Frequency Response / Frequency Response 5Hz ~ 20KHz (- 1dB)

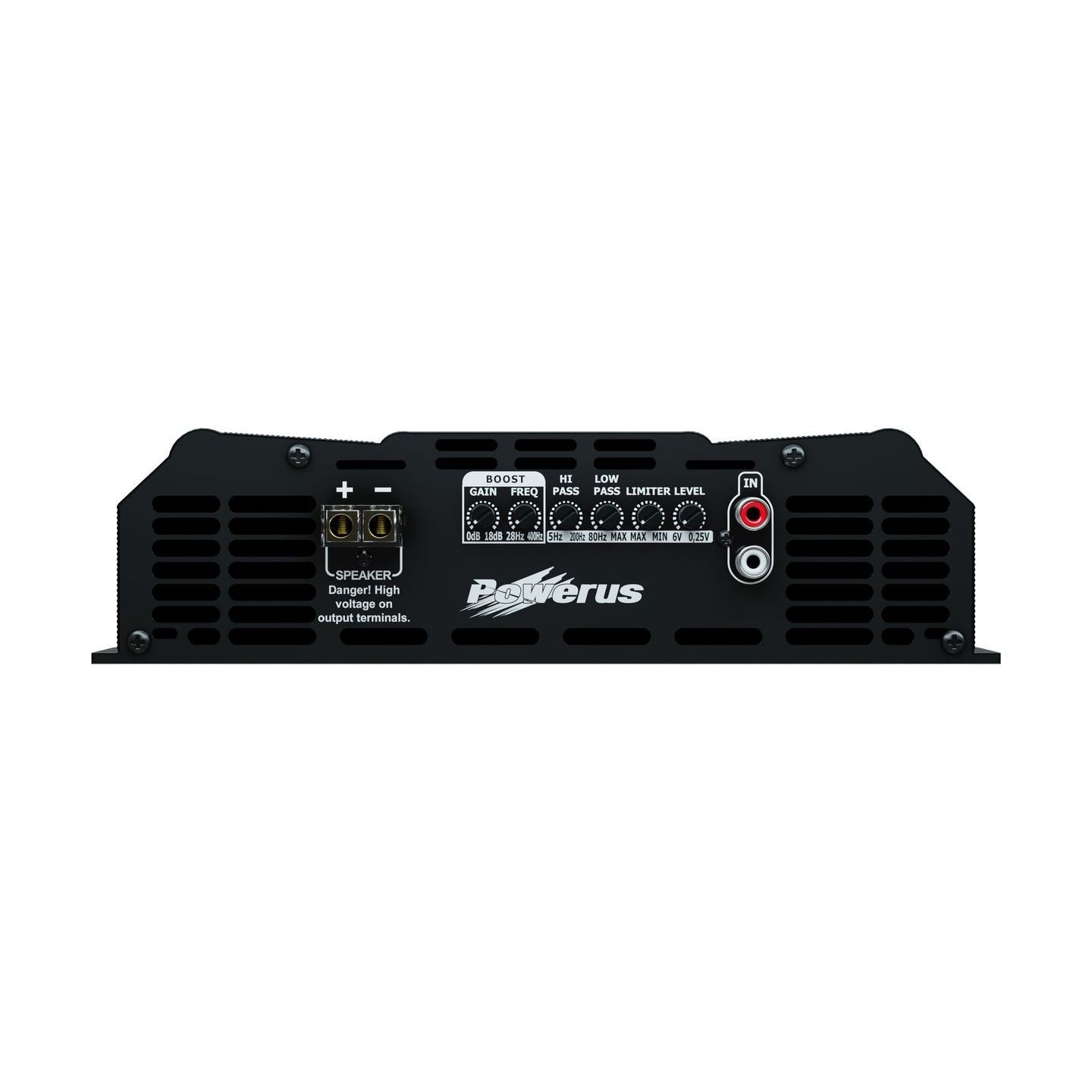

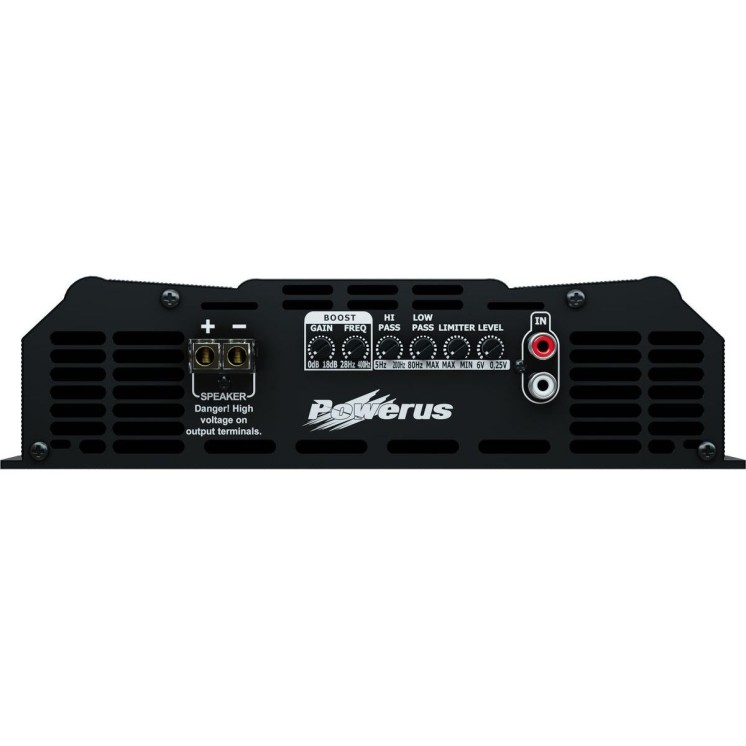

Low Pass Crossover 80Hz ~ 20KHz
Crossover High Pass 5Hz ~ 200Hz
Boost Gain / Boost Gain 0dB ~ 18dB
Variable Boost Frequency / Frequency of Variable Reinforcement. 28Hz ~ 400Hz
Variable Threshold Limiter / Variable Threshold Limiter Exclusivvo
Dimensions / Dimensions (DxHxW) mm 70x280x450
Weight without Packaging / Weight if Packing 7.80Kg

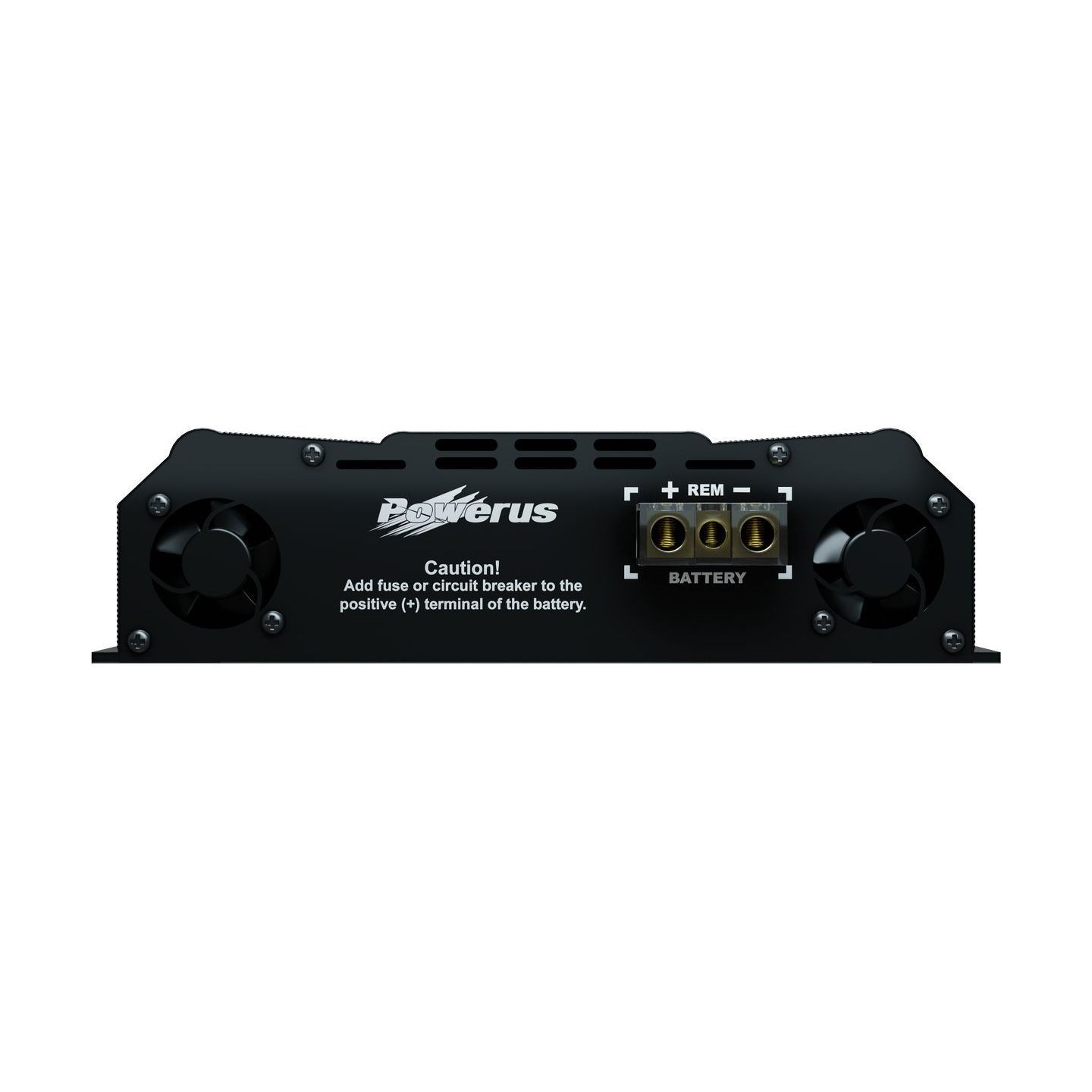

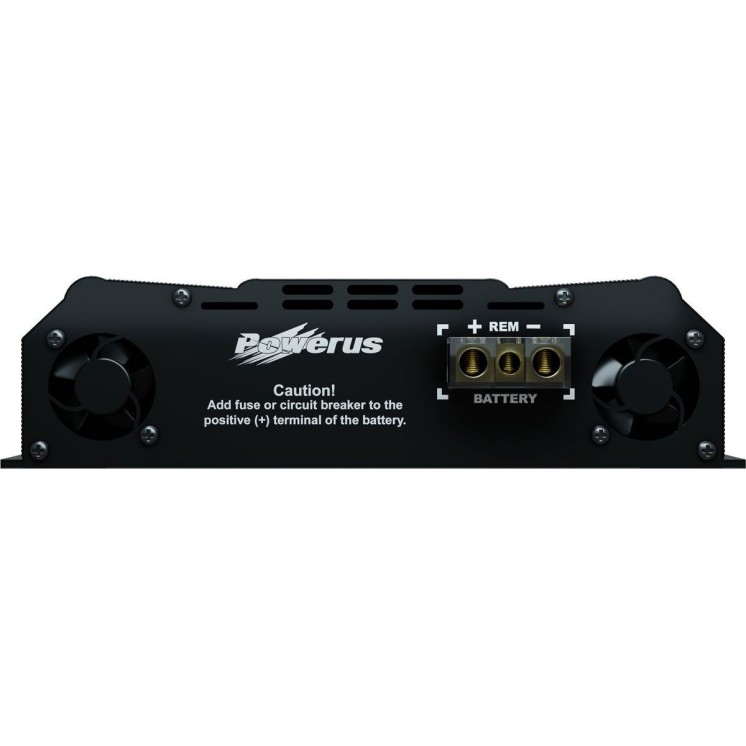

To install the power supply, use cables with a 50mm2 gauge. OR BIGGER with reducers. (DUAL OR TRIPPLE INPUTS ARE ALSO NEEDED) SEE SEPARATE LISTING

The positive cable must come directly from the battery, with a fuse or protective circuit breaker/fuse located 30 cm from the battery. The negative cable must have the same gauge as the positive cable and screwed into the vehicle's chassis, taking care to avoid paint and rust that may prevent the passage of electrical current, causing loss of power and noise in the sound.

this amplifier requires an upgraded power supply, extra battery/batteries and up-rated alternator (all vehicles requirements will vary)
